Dunloflex® - Fenner Dunlop Conveyor Belting

Multi-ply Belts



Outstanding toughness and strength combined with flexibility and adaptability.

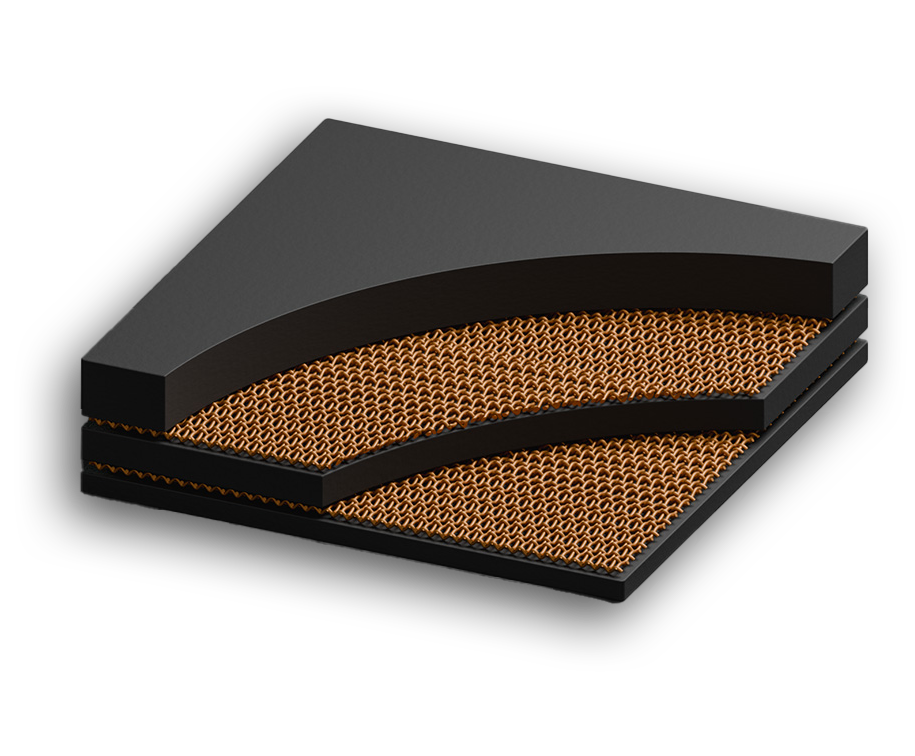

Dunloflex® cross section

Download area


The long-standing success of Dunloflex is due to its tried and tested carcass construction consisting of two ultra-strong synthetic EP plies with an extra thick rubber layer between the plies to provide excellent impact and tear resistance as well as higher splice performance compared to conventional multi-ply belting. Dunloflex has particularly good load support with low elongation (stretch) characteristics designed to convey all types of bulk material from sand and gravel up to medium-heavy service conditions such as mining, stone, and earth as well as heavy building materials and waste. Dunloflex key advantages compared to conventional rubber multi-ply belting.

  • High resistance to impact and tears
  • Superior splice performance
  • Greater effective load support
  • Outstanding reliability and durability


Fenner Dunlop Dunloflex belts are custom made to order. They can be supplied in all Fenner Dunlop cover grades and in tensile strengths ranging from 200 N/mm up to 800 N/mm in widths from 400mm up to 2200mm.


The Dunloflex carcass construction consists of two synthetic EP plies with an extra thick rubber layer between the plies to give excellent impact and tear resistance and higher splice performance compared to conventional multi-ply belting.

What they say about the product

"The biggest advantage for our business is that we do not have to replace the belts so often because of the longevity of the Fenner Dunlop belts"

UK quarry operations manager


  • Abrasion resistance
  • Anti-static
  • Fire resistance
  • Heat resistance
  • Oil resistance
  • Ozone & UV resistance

Best for the following industries

widths: 400 mm up to 2200 mm

When you buy Fenner Dunlop
you also buy peace of mind

Read more about our products

Fenner Dunlop Conveyor Belting
Dunlop Conveyor Belting
The Longest Lasting Conveyor Belts
