Trioflex® - Fenner Dunlop Conveyor Belting

High Impact / Heavy-duty Belts



The ideal belt for heavy loads, coarse materials and adverse loading conditions.

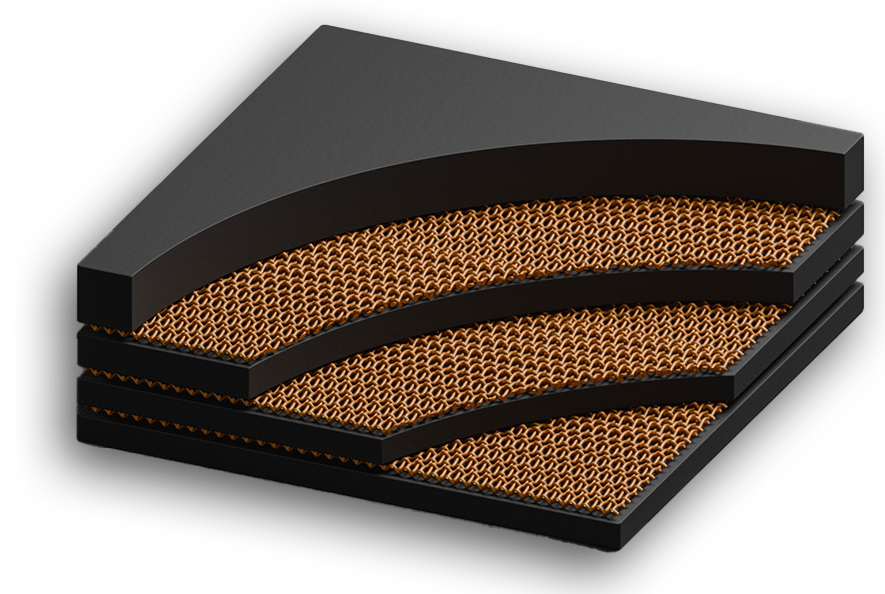

Trioflex® cross section

Download area


Trioflex has been designed in line with the modern MPC-trend (minimum ply concept) and can be used very successfully for medium up to the heaviest service conditions, adverse loading conditions and coarse materials. As its name implies, the Trioflex carcass consists of three extremely tough and resilient EP fabric plies that are impervious to moisture and have a low elongation. There is an extra tough rubber layer between the plies. This all adds up to outstanding levels of impact and tear resistance.

  • Tensile strengths available from 400 N/mm up to 1250 N/mm
  • A wide range of widths available, from 400 mm up to 2200 mm
  • High-quality cover compounds suitable for -60°C up to +400°C, fire resistant, oil, grease, and abrasion resistant
  • Higher impact and tear resistance due to thicker rubber layers between the fabric plies
  • Higher splice performance than conventional multi-ply belting
  • Higher effective load support than conventional multi-ply belting


Trioflex belts are available from stock in 500, 630 N/mm tensile strengths using the Fenner Dunlop RS (high wear and cut resistance) cover quality. Other tensile strengths and cover grade options can be made to order. Available in widths from 400mm up to 2200mm.


Trioflex belts provide superb reliability and durability in a wide cross-section of industries, including the steel industry, blast furnaces, mining and coke industry, ore transport, stone industry, and processing industries.

What customers say about this product

"We have two primary conveyors. On one we have a Fenner Dunlop Trioflex 500 and on the other an EP 500/3 from your competitor. The Trioflex has been running well for seven years but I have to replace the competitor belt in less than three years. In future I will use Trioflex on both conveyors"

Maintenance manager. Glass industry. France


  • Abrasion resistance
  • Anti-static
  • Fire resistance
  • Heat resistance
  • Oil resistance
  • Ozone & UV resistance
  • Rip & Impact resistance

Best for the following industries
